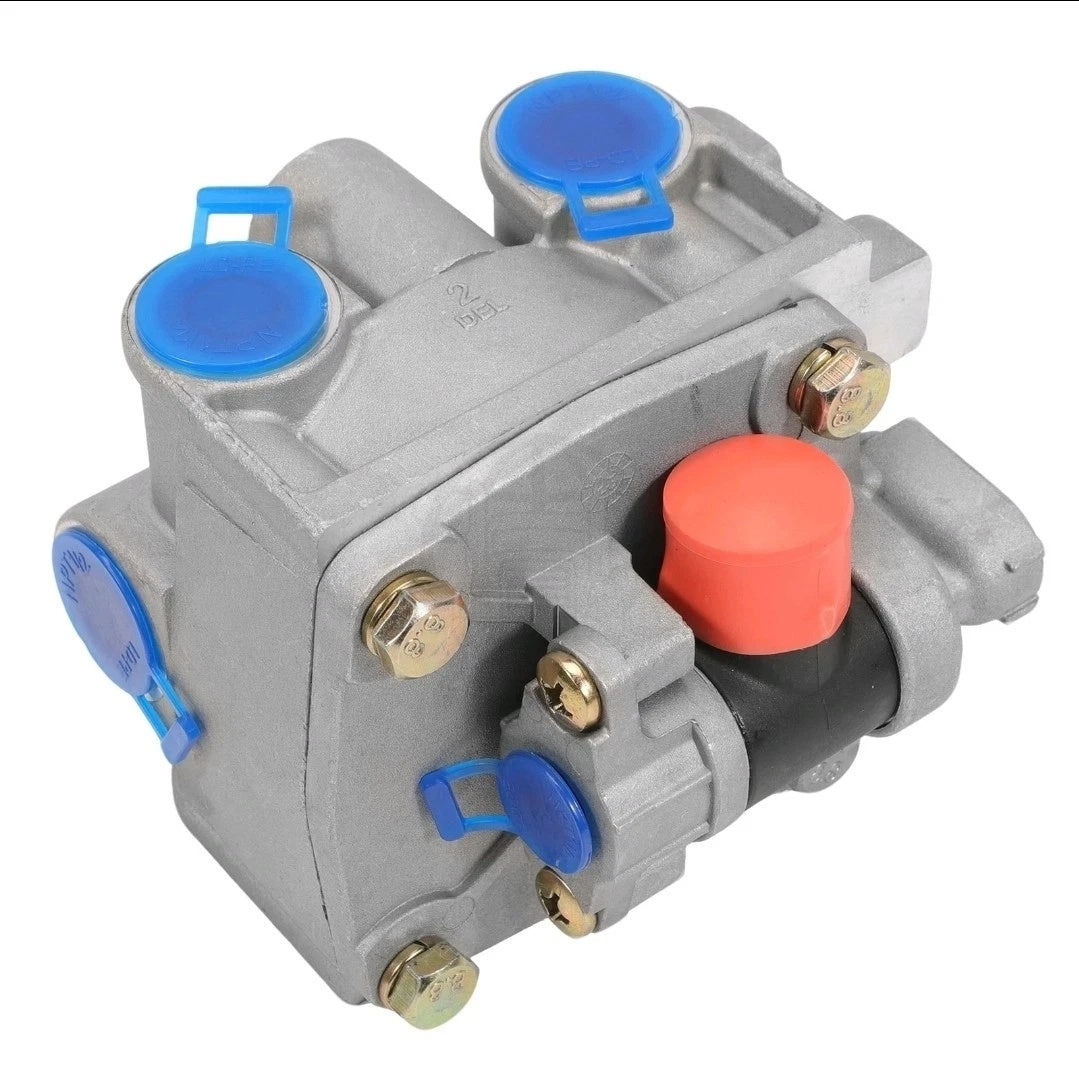

K070951 | Genuine OEM Bendix ATR-6 Traction Relay Valve

The Genuine OEM Bendix K070951 ATR-6 Traction Relay Valve is designed for heavy-duty commercial trucks equipped with compatible air brake and Automatic Traction Control (ATC) systems. This pneumatic relay valve helps regulate compressed air delivery during normal braking and supports traction control operation when drive-wheel slip is detected.

Featuring a 12V electrical solenoid, 5.5 PSI crack pressure, and a multi-port body configuration, this Bendix ATR-6 valve is engineered for reliable operation in demanding commercial vehicle braking applications.

PRODUCT INFORMATION

• Part Number: K070951

• Brand: Bendix

• Condition: Not specified

• Component: ATR-6 Traction Relay Valve

• Valve Type: Antilock Traction Relay Valve

• System: Air Brake / ABS / ATC

• Operating Voltage: 12V DC

• Crack Pressure: 5.5 PSI

• Body Configuration: 1 Supply / 8 Delivery Positions (6 Horizontal + 2 Vertical)

• Supply Port: 1/2"-14 NPT

• Control Port: 1/4"-18 NPT

• Active Delivery Ports: (4) 1/2"-14 NPT

• Closed Delivery Positions: 4

• Exhaust Port: Dust Shield

• Electrical Connector: 2-Way Circular DIN (ISO 15170-1 Twist-Lock)

• Mounting: (3) 3/8"-16 UNC-2B

• Internal Supply Passage: Yes

• Operating Temperature: -40°F to 185°F (-40°C to 85°C)

• Fuel Type: Not applicable; pneumatic braking component

• Engine Applications: Not engine-specific

• Replacement Reference: Bendix 803119

APPLICATIONS

The Bendix K070951 ATR-6 Traction Relay Valve is designed for selected heavy-duty commercial truck air brake systems requiring a compatible 12V automatic traction relay valve.

Potential applications include:

• Heavy-Duty Commercial Trucks

• Semi-Trucks and Highway Tractors

• Kenworth Trucks with Compatible ATC Systems

• Commercial Vehicles Equipped with Bendix ABS/ATC

• Air Brake Systems Requiring an ATR-6 Traction Relay Valve

Exact vehicle compatibility depends on the original valve part number, air port configuration, mounting specifications, and ABS/ATC system requirements.

FUNCTION

The Bendix ATR-6 Traction Relay Valve combines pneumatic service brake relay operation with electronically controlled traction management.

During normal braking, the valve helps deliver compressed air to the appropriate brake circuits. During automatic traction control operation, the integrated solenoid supports controlled brake application to reduce excessive drive-wheel spin.

A worn, damaged, or failing ATR-6 traction relay valve may cause symptoms such as:

• Air leakage around the valve or exhaust

• Delayed or inconsistent brake response

• ABS or traction control warning lights

• Reduced traction control effectiveness

• Electrical solenoid or pneumatic valve fault codes

• Improper air pressure delivery during braking

WHY REPLACE AN ATR-6 TRACTION RELAY VALVE?

A malfunctioning traction relay valve may interfere with service brake operation and automatic traction control performance.

Replacing a defective valve with the correct Bendix K070951 ATR-6 component helps restore intended air pressure regulation, proper pneumatic relay operation, and reliable ABS/ATC system functionality.

Proper brake system operation is essential for commercial trucks operating under heavy loads, on highways, and in changing road conditions.

FITMENT INFORMATION

The Bendix K070951 ATR-6 Traction Relay Valve is intended for specific commercial truck braking configurations. Compatibility must be verified before installation.

Before purchasing, confirm:

• Original Part Number: K070951

• Replacement Reference: 803119

• Vehicle make, model, and model year

• 12V electrical system compatibility

• 5.5 PSI crack pressure requirement

• Supply, control, and delivery port specifications

• Electrical connector and mounting configuration

• Original valve body configuration

• Vehicle Identification Number (VIN)

If you are unsure whether this valve fits your truck, please contact us with your VIN, truck model, model year, and original valve part number before ordering.

GENUINE BENDIX PART

Bendix is a recognized manufacturer of commercial vehicle air brake, ABS, and active safety components.

The Bendix K070951 ATR-6 Traction Relay Valve is designed to support specified commercial truck braking systems, helping maintain proper pneumatic operation and automatic traction control performance when correctly matched and professionally installed.
